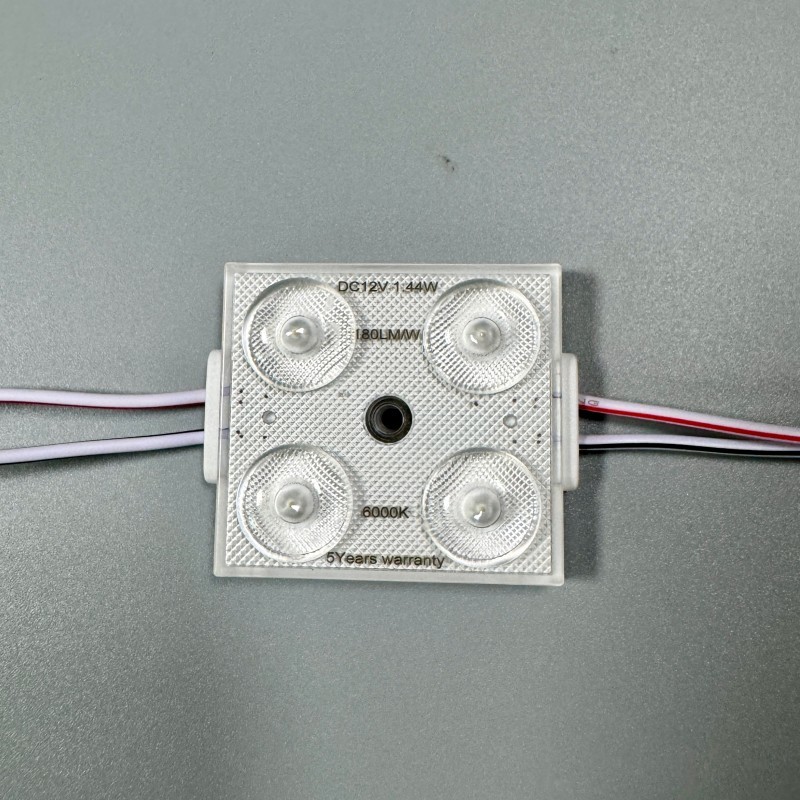

4leds Sign Light Module 2835 Back Light Module 12V 1.44W 180lm/W 175 Degrees
SONA series high-efficiency module designed for high-end projects, featuring 170-180lm/w output and DC12V/24V compatibility.
Ultra-wide lighting coverage with a beam angle greater than 175 degrees, available in versatile 1-2-3-4 LEDs configurations.
Most powerful 4leds option delivers superior brightness performance, specifically engineered to meet the demands of premium signage applications.
Product Parameters:
| Model No. |
LED |
color |
CCT (K) |
voltage |
power |
LM |
Effect
(LM/W) |
Angle |
| MFR033 |
SMD2835 |
White |
2700~6500K |
12V/24V |
1.08W |
195 |
180 |
175° |
| 7000~10000K |
| Connection Qty |
Shell color |
Drive method |
Weight (g/50pcs) |
Warranty |
W T(℃) |
S T(℃) |
IP Level |
| 50pcs |
White |
Constant voltage/current |
500 |
7Years
Or 50000H |
-25-+60 |
-25-+80 |
IP66 |
Product Features:
Premium Material Construction: Features 1.5mm Aluminum PCB for superior heat dissipation and high-quality PVC body backed with original 3M VHB tape for secure installation.
High-Efficiency Optical Performance: Equipped with 170-180lm/w LED chips and custom-made 175-degree optic lenses to deliver powerful, wide-angle illumination for high-end projects.
Reliable Electrical Safety: Utilizes AWG#18 UL standard cables and a stable driving scheme to restrain current surges at startup, ensuring long-lasting protection for LED chips.
Led Module Applications:
Shopping Mall Directory Signs
Restaurant Outdoor Backlit Logos
Pharmacy Storefront Illuminated Lettering
FAQ:
Q: What are the available specifications for the SONA Series modules?
A: The modules are available in 1LED, 2LED, 3LED, and 4LED options, supporting both DC12V and DC24V voltage inputs to suit various project requirements.
Q: Is it recommended to mix old and new modules in the same signage?
A: Not recommended. It is better to adopt modules from the same production batch to ensure consistent visual effects and avoid color differences caused by unified bin selection issues.
Q: How can I ensure long-term protection for the LED chips?
A: Select a power supply with a soft start function to reduce startup current impact, which effectively protects the chips and ensures reliable performance.
